Color Filter
Any attribute whose terms have a swatch colour — not "the one called colour": a shop in German, or a "finish" attribute, work the same.
Place it on its own, beside the grid or in a sidebar of yours. It is one of the groups of Catalog Filters — if you use both, turn this group off there, or it shows up twice. How every filter behaves — links, folding, «show more» — is on Filters.

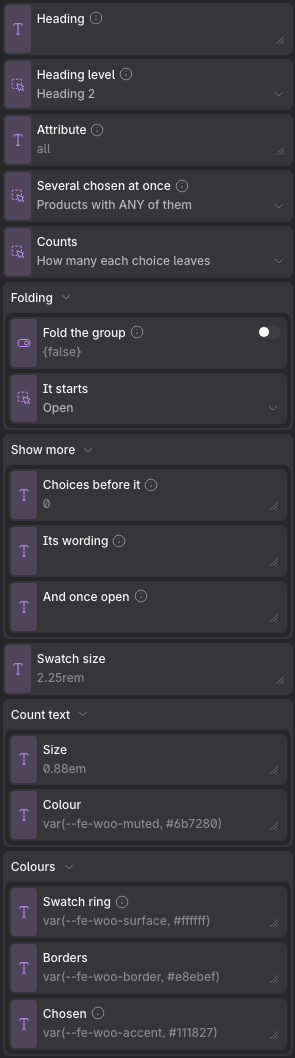

Its options
Props
| Prop | Type | Default | What it does |
|---|---|---|---|
| Heading | text | — | What this group is called. Leave it empty to keep the name the attribute or the taxonomy already has — which stays right when somebody renames one. Ignored when this filter draws more than one group. |
| Heading level | choice: h2, h3, h4 | h2 | On its own beside the grid it is usually an h2; inside a sidebar under its own heading, an h3. |
| Attribute | text | all | «all» for every attribute with swatches, or one name — «color», «finish». |
| Several chosen at once | choice: or, and | or | «Any» is what most people mean when they tick two. WooCommerce's own widget defaults to «all». |
| Counts | choice: yes, brackets, no | yes | |
| Folding → Fold the group | on / off | off | Turns the title into a disclosure, so a long column reads as a list of headings. A group that is filtering something always opens, whatever the state below says. |
| Folding → It starts | choice: open, closed | open | |
| Show more → Choices before it | text | 0 | How many choices a group shows before the rest go behind the button. 0 shows every one. Every choice is in the page either way, so nothing is lost without JavaScript. |
| Show more → Its wording | text | — | Empty is «Show 12 more», translated. Write your own with {count} where the figure goes. |
| Show more → And once open | text | — | Empty is «Show less», translated. |
| Swatch size | text | 2.25rem | |
| Count text → Size | text | 0.88em | |
| Count text → Colour | text | var(--fe-woo-muted, #6b7280) | |
| Colours → Swatch ring | text | var(--fe-woo-surface, #ffffff) | The gap drawn between a chosen swatch and its outline. |
| Colours → Borders | text | var(--fe-woo-border, #e8ebef) | |
| Colours → Chosen | text | var(--fe-woo-accent, #111827) | The outline around the swatch that is picked. |
It reads the same variables as the whole column: see Catalog Filters.
